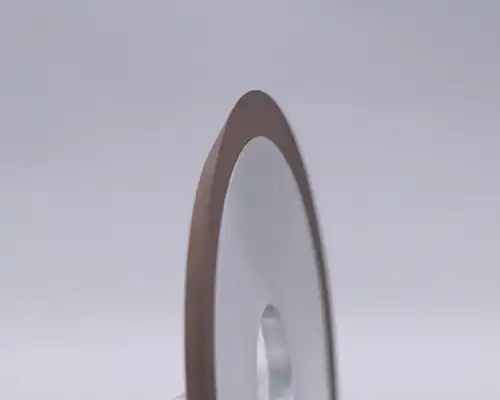

CNC Fluting Wheel
Hybrid Bond Fluting Grinding Wheels
- Large Cutting Depth
- Fast Feed
- High Grinding Efficiency
- Long Dressing Interval
It has the advantages of good sharpness and self-sharpening of resin bond and good rigidity, high strength and good shape retention of metal composite bond.

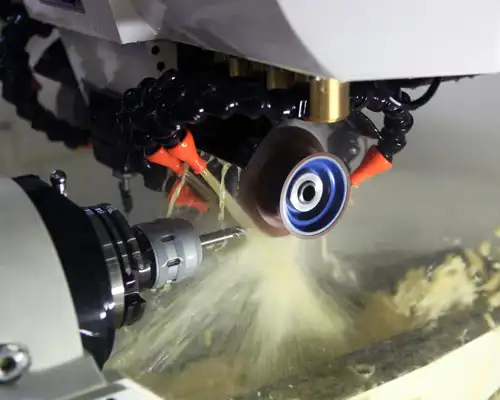

Fluting wheel is made by sintering superabrasives, mainly used for grinding CNC tools such as drill bits and milling cutters. In the process of the fluting grinding, flute the circular workpieces, and obtain the sharp spiral grooves along the end mill.
This quality of this process will have a significant impact on the life and sharpness of CNC tools.

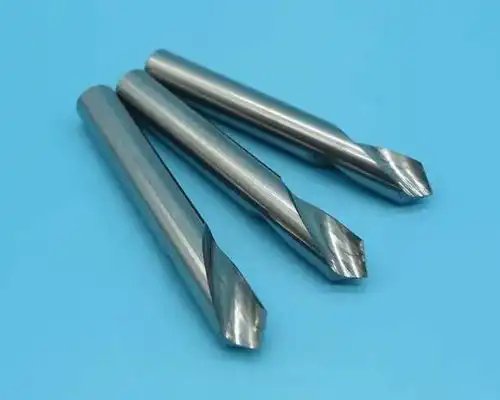

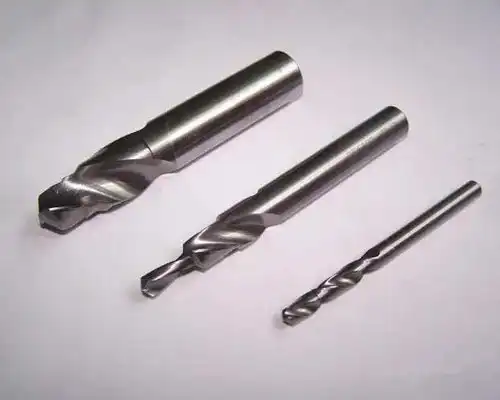

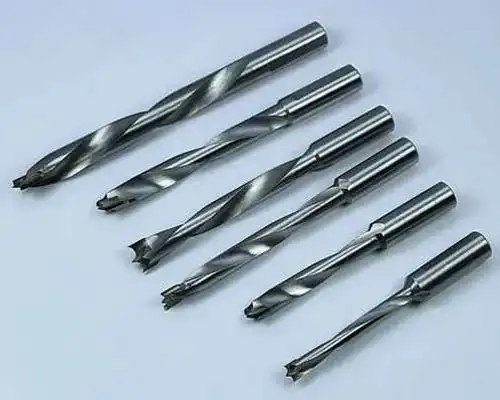

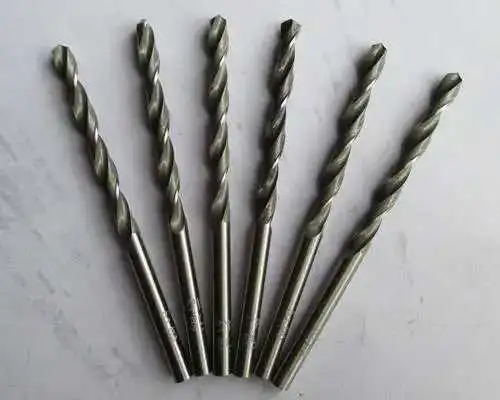

Fluting Grinding Workpiece Display
Types of Flute Grinding Wheel:
The materials of CNC cutting tools that are drill bits or milling cutters can be divided into two types: one type is containing iron (such as stainless steel), other type is non-metallic hard and brittle materials (such as tungsten carbide).
Diamond Fluting Wheels
The diamond fluting wheel is specifically designed for grinding non-metallic hard and brittle materials.
If it is carbide drill fluting grinding, should choose diamond fluting wheel.
CBN Fluting Wheels
CBN flute grinding wheel can be used for the iron containing elements.
When diamond grinds the containing iron group elements, will carbonizate at high temperature. So when HSS end mill fluting grinding, choose CBN fluting wheel
Selection of Bonding Agent of Wheel
CNC fluting grinding belongs to large feed grinding.
With the maximum cutting depth up to 8mm, it has high requirements for superabrasive wheel, grinding equipment, and lubricants. If this process is not done well, it not only affects the quality of the cutting edge, but also affects the surface quality of the cutting surface, even there will be burns and cracks on the spiral groove after grinding.
Large feed grinding requires superabrasive wheels to have good sharpness.
Large cutting depth cutting will have a large amount of heat, and the cutting fluid cannot reach the deep groove well, resulting in the accumulation of heat. This requires the bonding agent of grinding wheel to be resistant to high temperature. There is large consumption for large feed grinding to wheels and requires fluting wheel to have a good service life.
Because the resin bonding agent is more soft, although it has high sharpness, the resin bond grinding wheel will be deformation and has a low life when grinding. Due to the strong bonding ability of metal bond to abrasive particles, the self sharpening of grinding wheels is poor, resulting in low grinding efficiency and difficulty in dressing. But metal-resin hybrid bond has good features.
The hybrid bond fluting wheel has high wear resistance and sharpness, which can meet the characteristics of large cutting depth and large feed.
It can improve the efficiency of machining CNC tools.
The hybrid bond fluting wheel has low grinding resistance and low grinding temperature during grinding, and there will be no cracks, burns, and thermal deformation of the rod material in the process of powerful flute grinding wheel. The life of fluting wheel is also very long, which increases the dressing cycle of grinding wheel.

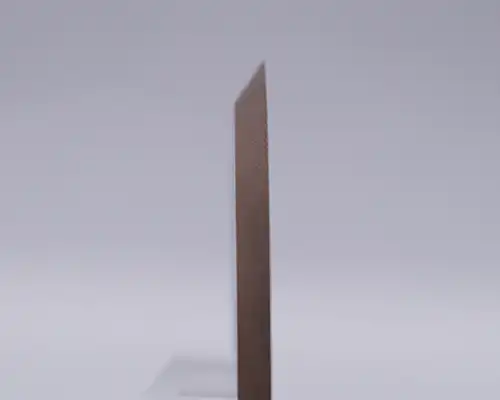

Mode of Flute Grinding Wheel: 1A1, 1V1, 14A1, 14V1
The hybrid bond superhard grinding wheel will not affect the characteristics of CBN and diamond.
The hybrid bond diamond wheel is used for grinding carbide drills and milling cutters. The hybrid CBN wheel is used for HSS drills and milling cutters.
Performance comparison of Superabrasive wheels with 5 binders
Type of Binder | Self-Sharpening | Sharpness | Life | Dressing Difficulty | Price |
Metal | |||||
Resin | |||||
Vitrified | |||||
Electroplated | |||||
Metal-Resin |
