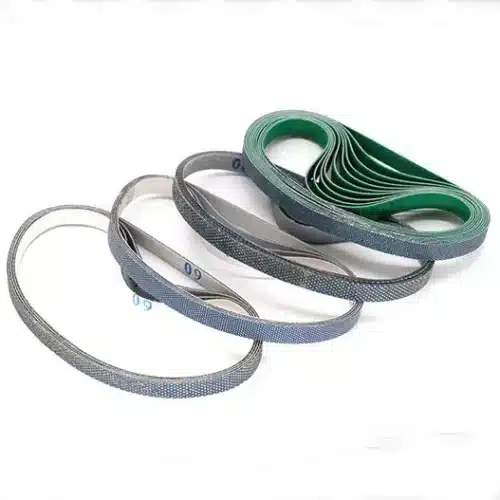

Diamond sanding belt is a coated superabrasive product developed with artificial diamond as abrasive and a new manufacturing process. It has the dual advantages of the softness of traditional coated abrasives and the high hardness of diamond.

Product

CBN Sanding Belts

Diamond Flap Wheels

Diamond Sanding Paper

Diamond Flap Disc

Diamond Quick Change Disc

Diamond Sanding Blocks

Thermal Spray Coating

Diamond sanding belt is a kind of coated abrasives, which form diamond layer by coating or electrodepositing diamond abrasive on a specialized substrate, and then bonding the substrate of the diamond layer to the matrix.

Application of Diamond Sanding Belts

Diamond belt is widely used for grinding and polishing brittle and hard materials such as glass, tungsten carbide, monocrystalline silicon, polycrystalline silicon, ceramic, and composite materials.

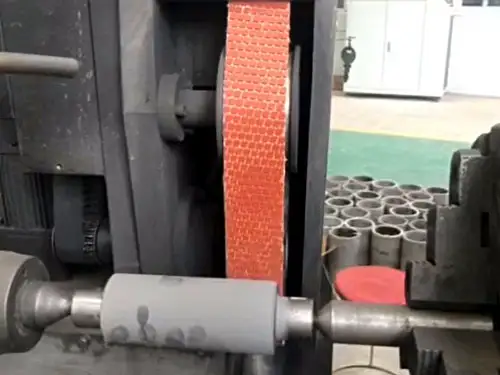

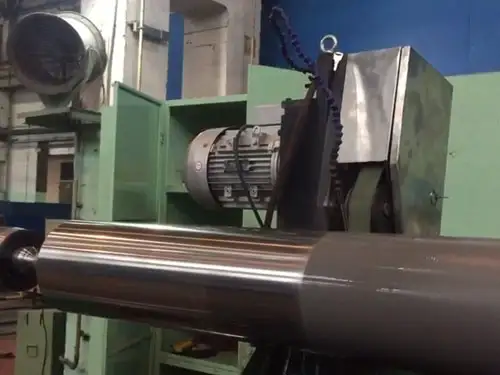

For the surface polishing of ceramic piston and tungsten carbide, as well as the grinding of tungsten carbide spray coatings, resin bond diamond sanding belt can avoid the problems of burns caused by diamond grinding wheel grind the workpieces at high temperature, and ensure that the surface roughness Ra reaches 0.01μm.

For glass edge grinding, The belt can chamfer and edge grinding various types of glass with good consistency, and are not easily chipping. It is widely used for car windshield, tempered glass for architectural furniture, electronic glass and other processing fields.

Workpiece Display

When electroplated diamond sanding belt grinding zirconia ceramic cutting tools, the flexibility of sanding belt reduces the cracks and explosions during grinding, resulting in better surface quality.

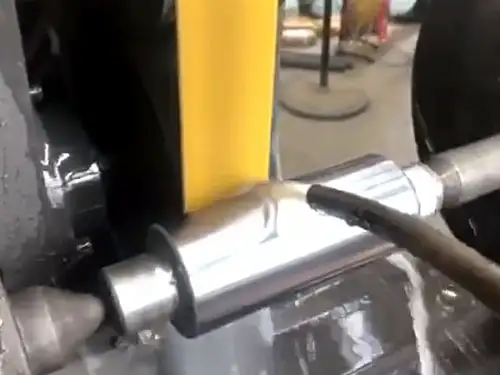

The belt can also be used for monocrystalline silicon, optical glass, jade, and agate grinding with high grinding efficiency and good surface roughness.

Types of Diamond Sanding Belts :

According to different production technology, diamond sanding belt can be mainly divided into electroplated and resin bond belt.

Electroplated diamond sanding belt

Electroplated diamond belt is first to pre plate metal mesh and nickel metal on the matrix by electroplating, then electroplate diamond abrasive at a certain density inside the metal mesh, and finally bond the matrix and cloth substrate with the bonding agent.

Electroplated sanding belt has high strength, and the wear resistance and heat resistance of the bonding agent are higher than those of resin bond sanding belt, which is suitable for high-speed and heavy-load grinding.

Resin Bond Diamond Sanding Belt

Resin bond diamond Abrasive belt is made of diamond abrasive, resin bonding agent, and other raw materials in a certain ratio mixing and uniformly coating on the surface of the matrix, and then curing by baking and pressing.

Resin bond belt has smooth surface and good consistency, which is suitable for grinding and polishing materials with high surface roughness requirements.

The pattern of electroplated sanding belt is usually dot, while that of resin bond diamond sanding belt is rectangular.

The sharpness of electroplated sanding belt is higher than that of resin diamond belt, but resin belt has a better life, and the surface smoothness of the workpiece to be ground is higher.
