Brazed Diamond Grinding wheel for Cast Iron Industry
Diamond Tools for Cast Iron
- Cast Iron Grinding Wheel
- Cast Iron Grinding Disc
- Cast Iron Grinder Blade
- Cast Iron Grinding Bit
Brazed diamond tools are widely used in specific grinding processes and have the characteristics of high sharpness and good wear resistance.
Cast iron is an iron carbon alloy with the carbon content that is more than 2.11% (usually 2.5-4%).
It is mainly composed of iron, carbon, and silicon elements, and contains more impurities such as manganese, sulfur, and phosphorus, which is a poly-alloy. Sometimes, add some alloy elements to improve the mechanical or physical and chemical performance of cast iron, obtaining the alloy cast iron.
Types of Cast Iron
According to the different graphite morphology in cast iron, cast iron can be divided into gray cast iron, malleable cast iron and ductile cast iron.
Gray Cast Iron
The graphite is in flakes in gray cast iron.
Malleable Cast Iron
The graphite is in flocculent form in the malleable cast iron. It is obtained from white cast iron with a certain composition after high temperature and long-term annealing. Its mechanical performance ( especially toughness and plasticity) is higher than that of gray cast iron, so it is referred to as malleable cast iron.
Ductile Cast Iron
The graphite is in a spherical shape in ductile cast iron. It is obtained by spheroidization treatment before casting of ferroalloys. Its mechanical performance is higher than that of gray cast iron and malleable cast iron, and the technology is simpler than that of malleable cast iron. Also it can further improve the mechianical performance by heat treatment, and so it is used increasingly widespread in the production.
Diamond Tools for Cutting&Grinding :
Grinding of cast iron is a very important part in the casting industry. Vacuum brazed diamond tools can be used for grinding cast iron to improve smoothness, brightness and uniformity of the casting surface and the appearance quality of the casting. At the same time, it can also remove the burrs and pores left during casting, and the grinding efficiency is higher than that of the traditional resin grinding wheels.
Process technology:
It is an active fusion (brazing) technology. Diamond particles are brazed on the substrate by brazing alloy melting at high temperature.
Vacuum Brazed Diamond Cast Iron Angle Grinder Blade
Vacuum brazed diamond blade for cast iron applies a large edge wide and thick substrate structure.
High grade synthetic diamond ensures the tools edge loading uniform.
High quality 65Mn substrate prevents stress deformation after welding, and improves the strength of grinding disc during processing.

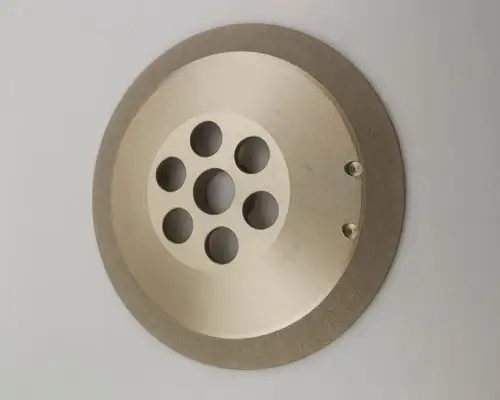

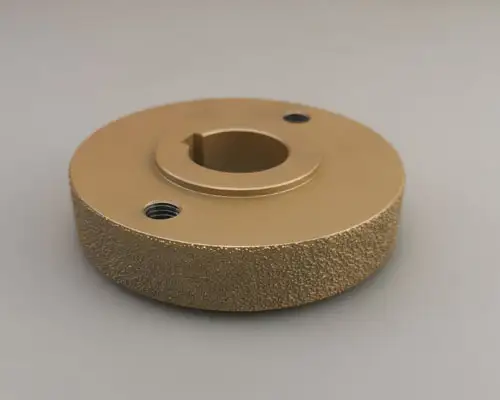

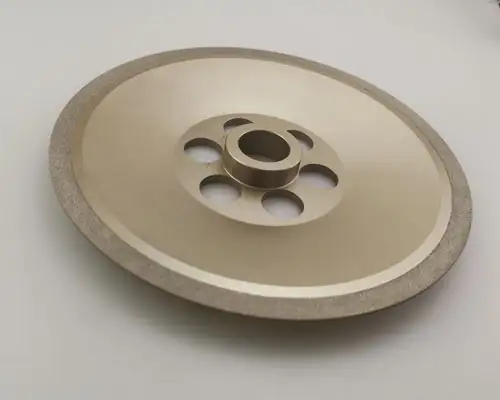

Vacuum Brazed Diamond Grinding Wheel for Cast Iron
According to the customized requirements of customers, brazed diamond grinding wheel for cast iron can be used to deal with residual of riser and runner of casting and large fins, and burrs on the cast iron, making the grinding workpieces more flexible.
It can be designed for profiling, which can be oriented and fixed to remove the excess parts based on the size and shape of workpieces to be ground, ensuring better grinding efficiency and quality.
Vacuum brazed diamond grinding wheel is suitable for processing gray cast iron and ductile iron. Our company provide the wheel with safety, high efficiency, and environmental friendly. It can effectively replace the traditional resin grinding wheel.
The traditional casting cleaning and grinding adopts the resin bond ordinary abrasives with low bonding strength, which will cause some problems such as low efficiency, short life,large sparks, large dust, odor, and explosive discs. Our brazed diamond grinding wheel for cast iron is specialized in cleaning casting. As it directly welded the superabrasive particles on the steel substrate, it effectively overcomes the defects of resin grinding wheel, achieving the goals of safety, high efficiency and environmental friendly.
Vacuum Brazed Diamond Grinding Disc
It is used for grinding and rust removal of metal materials on the surface (ordinary steel, alloy steel, high-strength steel, cast iron, other metal materials). It is universal grinding and can used for grinding flat surface, curved surface, corner, and irregular surface and etc.
Features: high efficiency, long service life, small sparks, low vibration, safe and pollution-free, and high economic efficiency.
Vacuum Brazed Diamond Cast Iron Grinding Bit
Vacuum brazed diamond mounted point is a kind of grinding tool for casting cleaning. It is prepared based on the brazed diamond technology, and it is different from the traditional brazed diamond mounted point for carving stone.
There is a specialized parameter range for matching cast iron material processing in diamond grade selection, particle size ratio, fabric technology, and other aspects.
In addition, in order to ensure that the vacuum brazed Diamond Cast Iron Grinding Bit can work under heavy load and extreme working condition, the handle of mounted point has undergone professional heat treatment, ensuring the high strength and toughness of the handle. It is effectively applied in hand-held and robot grinding and cleaning field.
