Diamond Grinding Tools for Ceramic Industry

Diamond Grinding Tools for Ceramic

Zirconia
Aluminum Oxide
Boron Carbide
Silicon Carbide

The overall hardness of engineering ceramics is relatively high, and the hardness of different types is also different, which places high demands on superabrasive diamond tools.

Product

Diamond Grinding Wheels

Diamond Cut Off Wheels

Diamond Flap Wheels

Diamond Quick Change Disc

Diamond Sanding Blocks

Engineering ceramic is a kind of material which is difficult to grind. Diamond wheel is the main grinding mode. The ceramic with holes can be ground by honing technology, and diamond abrasive belt is also a kind of grinding process for ceramic.

Engineering ceramic material mainly include compound composed of metal and non-metallic element such as boron, carbon, silicon, nitrogen, oxygen, as well as non-metallic element compound. According to the different elemental compositions, engineering ceramic can be divided into oxide ceramic, nitride ceramic, carbide ceramic, and etc. For example, alumina, zirconia, silicon carbide, silicon nitride, quartz ceramic, aluminum nitride, boron nitride, boron carbide, etc.

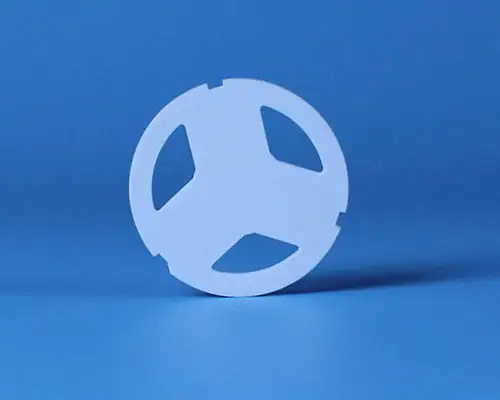

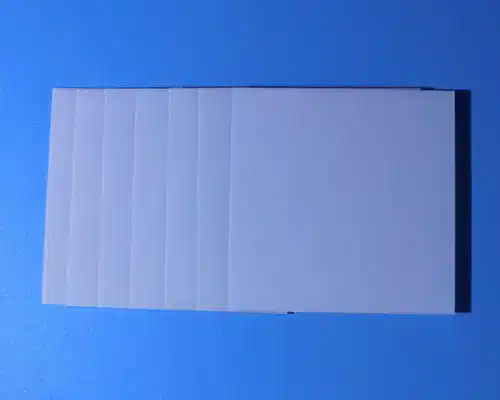

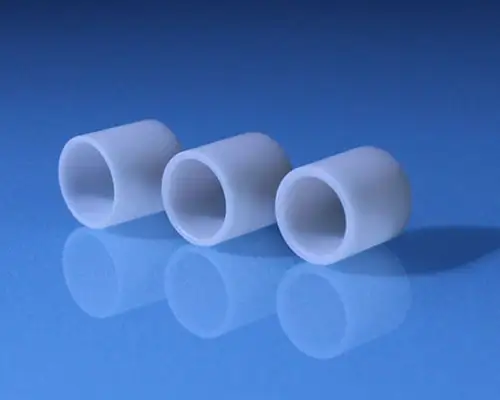

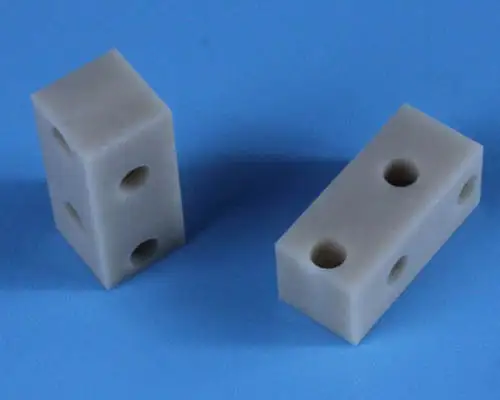

Engineering Ceramic Workpiece Display

Applications of Engineering Ceramic:

Engineering aerospace: high-temperature structural ceramic, ceramic turbine engine

Machinery: ceramic bearing

Vehicle: vehicle shock absorber, intelligent ceramic wiper

Military industry:

Advanced ceramic is widely used in bulletproof armor, ceramic insulation tile, missile control system, radar and other military weapon, as well as insulation materials for missile.

Medicine:

It can be used as prosthetic for surgical correction surgery (such as various joints), dental implant, middle ear bone implant, artificial heart valve, bone defect filler, artificial tendon and ligament material, and so on.

How to Choose Diamond Grinding Tools for Ceramic

Surface grinding, cylindrical grinding, internal grinding, centerless grinding, honing, abrasive belt grinding

Diamond Grinding Wheel for Engineering Ceramic

Vitrified bond diamond grinding wheel is the first choice for engineering ceramic grinding.It has better sharpness and long life, without dressing. Ceramic has high hardness, a large amount of heat, and the vitrified bond diamond grinding wheel has abundant pores, which can effectively disperse heat. Resin bond diamond grinding wheel can be used for precision grinding.

When grinding boron carbide, resin bond diamond grinding has a short life, while vitrified bond diamond grinding wheel is approved by customers for the sharpness and life.

Diamond Honing Stick for Engineering Ceramic

Ceramic parts with holes are being used in many industrial fields. Honing has good advantage in machining holes, and resin bond diamond honing stone is the first choice, and metal bond diamond honing stone has higher processing efficiency, and electroplated diamond honing stone will make deep scratches.

Diamond Abrasive Belt for Engineering Ceramic

Diamond belt can be used for various complex ceramic workpices with high grinding efficiency. Electroplated diamond abrasive belt has good grinding efficiency. Resin bond diamond abrasive belt can be used for grinding ceramic, achieving excellent surface roughness. When choosing the diamond abrasive belt, pay attention to the grain size.

There are various types and shapes of engineering ceramic materials, and choose the suitable diamond grinding tools for ceramic based on actual grinding scenarios.
