Diamond Cut Off Wheels
Diamond Cutting Wheels
- Metal Bond Wheels
- Resin Bond Wheel
- Electroplated Wheel
The wheel uses a special bonding agent with excellent sharpness and shape retention. It has a series of advantages such as high precision, small cutting gap, and good processing surface quality.
Diamond cut off wheel can be understood as ultra-thin diamond grinding wheels. It is mainly used for cutting and slotting various brittle and hard materials.
Types of Diamond Cut-Off Wheels :
This Wheel can be divided into metal type wheel, resin type wheel and electroplated type wheel.
Metal Bond Diamond Cut Off Wheels
Mix metal bond agent and diamond powder in a certain proportion, and then hot pressed sintered them.
Metal bond diamond cutting wheels have strong holding force, high wear resistance, good blade shape retention, and long life.
Resin Bond Diamond Cut Off Wheels
The resin bonding agent and filler are subjected to precision grinding and ball milling treatment, and mix the processed resin bond agent and diamond, and perform cold pressing sintering, and then hot pressed into shape. After sharpening, the resin bond diamond cut off blade is finished.

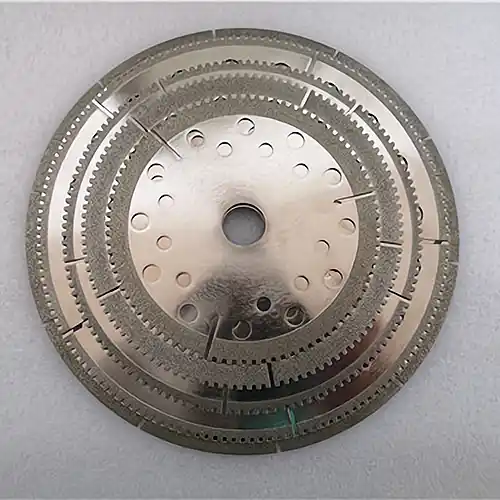

Electroplated Diamond Cut Off Wheels
With metal substrate as the cathode and electrolytic nickel plate as the anode, put the secondary plate in the electroplating solution containing diamond abrasive, and connect the cathode to the negative pole of DC power supply and the anode to the positive pole of the DC power supply
After the power is turned on, the diamond abrasive in the solution is homogenized with the metal ions on the cathode in a suspended state by stirring，in order to obtain a composite electroplated layer uniformly mixed with metal and diamond abrasive.
After the thickness of the plated layer reaching the requirement, the cathode is taken out of the solution.After cleaning and drying, separate the plated layer and cathode by heating, and then diamond cut off wheel is made into the specified size by stamping die.
Application of Diamond Cut Off Wheels
- Tungstenalloy (YG8) rod and plate, tungsten steel round rod, (segmented rod) drill bit, PCB board drill bit, mold ejector pin, mold tip, motor pole, gong knife, shuttle in the textile industry, machine tool shaft diameter, machine tool axis, woodworking cutting tools, high-precision and wear-resistant mold, progressive mold, anti-theft plate, X-ray radiation protection plate, cutting tools, etc.
- Optical glass, quartz glass, various glass tubes, microcrystalline glass, gemstones, crystals, jade materials, etc.
- Silicon oxide/zirconium oxide/aluminum oxide/black ceramics/glass products/ceramic tubes, etc
Magnetic materials: neodymium iron boron, silicon steel, amorphous, nanocrystalline, ferrite, magnetic powder core, etc.
The Production Process of Diamond Cut Off Wheels
To assist you in selecting the most suitable diamond cut off wheel, please provide the following parameters when placing an order.
Specification: abrasive type, grain size, bonding agent, outer diameter, thickness, inner diameter, width of abrasive working layer, substrate thickness, etc.
Application: workpiece name, cutting material, cutting size.Usage condition when cutting groove, cutting off: machine tool, grinding wheel speed, feed rate, cutting depth, dry or wet cutting, etc.
Cutting requirements: cutting accuracy, chipping requirement, processing surface integrity, etc.
Specifications Of Diamond Cut Off Wheels
Special requirements: Whether wheels are used in combination?Whether the resin diamond cut off wheels need conductivity? Whether wheels have water grooves? Is there a chip groove on the outer side of the cutting wheel base?
Performance comparison of diamond cutting wheels with various binders
Type of Binder | Self-Sharpening | Sharpness | Life | Dressing Difficulty | Price |
Metal | |||||
Resin | |||||
Vitrified | |||||
Electroplated | |||||
Metal-Resin |
Metal Diamond VS CBN Cutting Wheels
