Diamond Cut Off Wheel For Optical Glass
Diamond Disc For Cutting Optical Glass
- Wider Grinding Range
- No Carbonization
- No Burns On Workpieces
- Sharp Grinding
Diamond cut off wheel for optical glass are used for precise cutting of lenses, prisms, and other optical components. There are resin bond, metal bond, and sometimes electroplated bond diamond cut off wheel. Diamond cut off wheel is divided into hub and hubless type according to the shape. It can effectively cut optical glass of various hardness levels . It can has high cutting accuracy and long life when used for precision cutting.
About Optical Glass:
Optical glass is made of melting various pure natural quartz, which can change the direction of light propagation and relative spectral distribution. It includes various types such as colorless optical glass, colored optical glass, laser glass, quartz optical glass, etc, which is widely used in components such as lenses and prisms in optical instruments.
Mohs hardness of optical glass: The Mohs hardness of most optical glass is usually between 5 and 6. The hardness of optical glass such as BK7 and F2 is usually 5.5-6, and is higher than that of ordinary glass.
Selection of Diamond Cut Off Wheel For Optical Glass:
When manufacturing small optical glass components, due to the difficulty of polishing and grinding individual small-sized parts, usually make larger optical components first, and then cut into many small components.
Due to the high brittleness of optical glass, the diamond cut off wheel will be chipping, and not perpendicularity between the side of the cutting surface and the workpiece, and poor surface roughness of the cutting. There will has high requirements for cutting equipment and diamond cut off wheel.

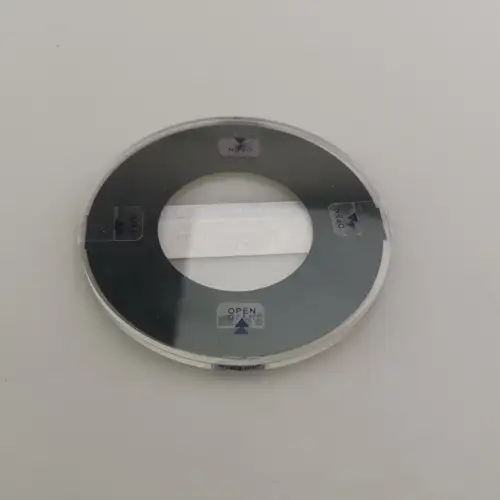

Substrate: Hub type diamond cut off wheel has a larger diameter and a larger cutting depth, while hubless diamond cut off wheel （aslo call dicing blade）has a smaller diameter and lower cutting depth, and has better cutting accuracy.

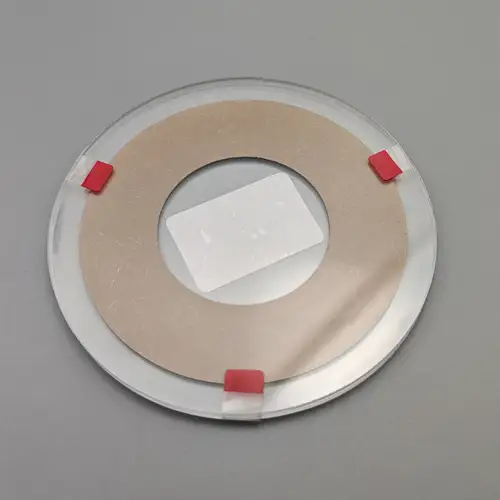

Bond: Resin bond diamond cutting wheels combine the advantages of resin and diamond, which provides high cutting speed and good surface quality. They are usually used in large-scale production or applications with high surface requirements for optical glass. Metal bond diamond cutting wheels have excellent wear resistance and require frequent dressing with dressing board.
In practical applications, choose the appropriate diamond cut off wheel type and grit based on the features of optical glass such as refractive index, thickness, hardness, etc.
We have rich experience in producing diamond cut off wheel for optical glass which are exported to many optical glass manufacturing companies in USA, Germany, Israel, France, etc. We also provide diamond pellets and diamond Grinding wheels for optical glass.
