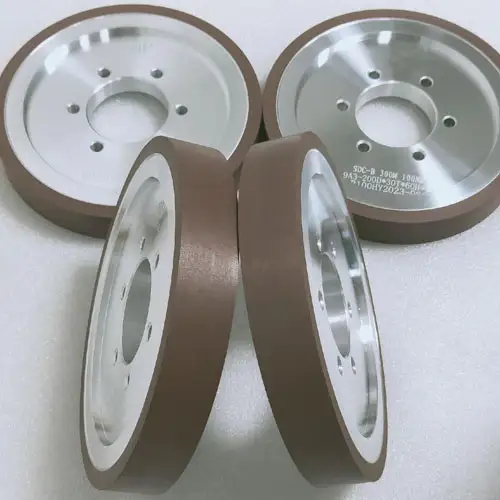

Cylindrical Diamond Peel Grinding Wheel
Diamond Peel Grinding Wheel
- High precision
- High efficiency
- Good stability
- Sharp Grinding
The diamond peeling grinding wheel is one of our company’s advantageous products. This product can be used for external cylindrical transverse grinding of solid carbide like turning, so that the tool can obtain ideal appearance profiling and steps.
Cylindrical Diamond Peel grinding wheel can be used for cylindrical grinding the whole workpieces like turning, allowing the tool to achieve an ideal appearance and step shape. Peel grinding wheel often use superhard abrasives, which is widely used in aviation, rail transportation, automobiles, molds, electronics, and other fields.

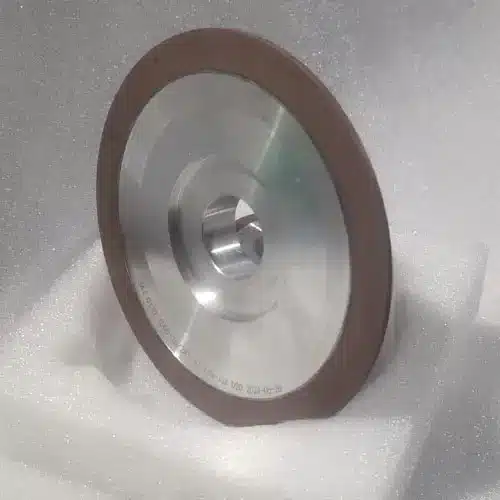

Diamond pinch peel grinding wheel is suitable for external cylindrical grinding of milling cutters, drill bits, wire taps, grooves, planes, threads, and chamfers. It works at high speed by continuously adjusting the distance and angle between the grinding wheel and the workpiece, achieving fine grinding of the workpiece.
About Pinch Peel Grinding
Pinch peel grinding is a cylindrical grinding method with good flexibility and high grinding efficiency. It ensures the surface roughness and excellent performance to achieve micrometer level accuracy. It is widely used for profile cylindrical peel grinding former working procedure of milling cutters, drill bits, tapping, and non-standard tungsten carbide rotary cutting tools.
With high speed rotating grinding wheel to finely grind the workpiece, peel grinding machine can achieve precise machining of complex shapes and high-precision requirements of the workpieces. CNC system can accurately control the position, speed, and feed rate of the grinding wheel, ensuring stability and consistency during the machining process.
At the same time, peel grinding machine also has an automatic compensation function, which can adjust processing parameters timely, eliminate processing errors caused by grinding wheel wear and thermal deformation, and further improve processing accuracy.
The pinch peel grinding machine can automatically complete the grinding work according to the preset program.
This automated production method not only avoids the influence of human factors on machining accuracy, but also greatly improves production efficiency and product quality.
Features of Diamond Peel Grinding Wheel:
- High precision: It can make the small adjustments to achieve high precision peel grinding requirements by numerical control system.
- High efficiency: In the automated processing, it improves the efficiency of peel grinding and saves labor costs.
- Good stability: The distance and angle between the peel grinding wheel and the workpiece can be precisely adjusted, resulting in higher stability and better reliability.
- Wide processing range: It can process workpieces of various shapes and materials.
- Good processing results: Fine peel grinding can result in better surface quality and processing results.
Selection Abrasives for Diamond Peel Grinding Wheel:
Diamond grinding wheel and CBN grinding wheel is mainly used for peel grinding. Please refer to the table below.
Selection The Bond Of Pinch Peel Grinding Wheel:
There are metal, resin, vitrified and electroplated bonding agents. Each has its own advantages and disadvantages.
Type of Binder | Self-Sharpening | Sharpness | Life | Dressing Difficulty | Price |
Metal | |||||
Resin | |||||
Vitrified | |||||
Electroplated | |||||
Metal-Resin |

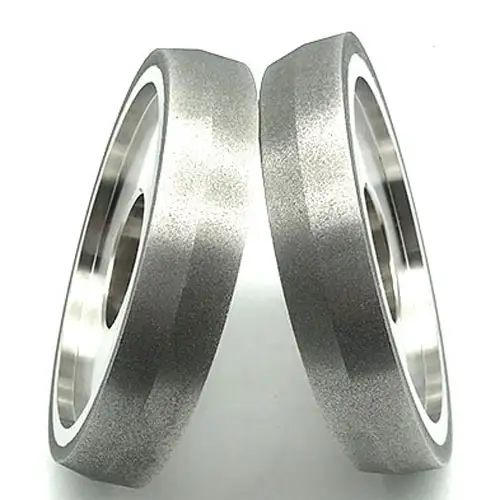

Electroplated peel grinding wheel can be used on the punch machine, either automatically or manually, and can be used for various parts.

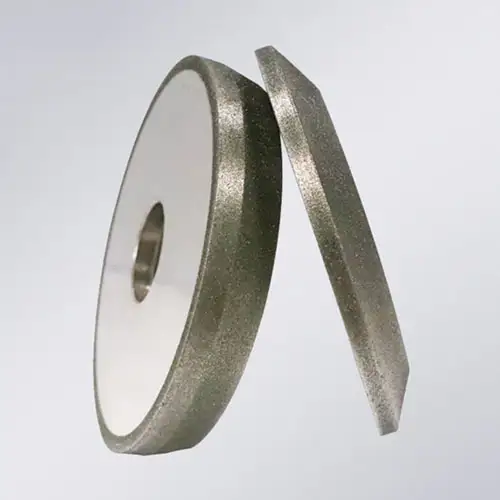

Diamond peel grinding wheels are mainly 1A1 plane wheel and also other shapes of grinding wheel available. Customers can provide drawings to indicate the required type of bond, size, and requirements for the surface quality of the workpiece.
